Ex 32A plugs – 3P | 4P | 5P
ATEX marking
II 2 G Ex db eb IIC T5 Gb
II 2 D Ex tb IIIC T80°C Db
Technical specifications
Downloads
A comparison with brands from Germany, Italy and Croatia revealed an average price difference of 30 per cent, with no apparent difference in build quality.
We top up our stock on an ongoing basis to ensure that the most popular variants are available straight away.
We design and manufacture socket sets and distribution boards for Ex zones, tailored to the requirements of the installation.
Are our products of high quality? Book a visit to our demo centre and compare them with solutions from other companies.
Ex SOCKETS AND PLUGS
Main electrical parameters
CURRENT | POLES | AC/DC PART NO. | AC/DC VOLTAGE | DATA SHEET |
|---|---|---|---|---|
32A | 3P (2P + PE) | HSP1P 32 AC250 3P PLG HSP1P 32 AC415 3P PLG HSP1P 32 AC500 3P PLG | 🔵 200~250V AC 🔴 380~415V AC ◯ 480~500V AC | Download |
32A | 4P (3P + PE) | HSP1P 32 AC250 4P PLG HSP1P 32 AC415 4P PLG HSP1P 32 AC500 4P PLG HSP1P 32 AC690 4P PLG | 🔵 200~250V AC 🔴 380~415V AC ◯ 480~500V AC ◯ 600~690V AC | Download |
32A | 5P (3P + N + PE) | HSP1P 32 AC250 5P PLG HSP1P 32 AC415 5P PLG HSP1P 32 AC500 5P PLG HSP1P 32 AC690 5P PLG | 🔵 200~250V AC 🔴 380~415V AC ◯ 480~500V AC ◯ 600~690V AC | Download |
Ambient temperature: -45°C to +65°C | Degree of protection: IP66 | Cable entry: M25 cable gland + M25 blanking plug Integrated switch: ON / OFF switching by rotating the plug in the socket |
||||
KOD PRODUKTU AC/DC | ILOŚĆ STYKÓW | NAPIĘCIE AC/DC |
|---|---|---|
HSP1P 16 AC25 2P W-SCT / HSP1P 16 DC25 2P W-SCT HSP1P 16 AC50 2P W-SCT / HSP1P 16 DC50 2P W-SCT | 2P | 🟣 20~25V AC / 20~25V DC ⚪ 36~50V AC / 36~50V DC |
| PDFPobierz kartę katalogową | ||
HSP1P 16 AC25 3P W-SCT / HSP1P 16 DC25 3P W-SCT HSP1P 16 AC50 3P W-SCT / HSP1P 16 DC50 3P W-SCT HSP1P 16 AC130 3P W-SCT HSP1P 16 AC250 3P W-SCT / HSP1P 16 DC250 3P W-SCT | 3P (2P + PE) | 🟣 20~25V AC / 20~25V DC ⚪ 36~50V AC / 36~50V DC 🟡 110~130V AC 🔵 200~250V AC / 50~250V |
| PDFPobierz kartę katalogową | ||
HSP1P 16 AC25 3P W-SCT HSP1P 16 AC50 3P W-SCT HSP1P 16 AC130 3P W-SCT | 3P (1P + N + PE) | 🟣 20~25V AC ⚪ 36~50V AC 🟡 110~130V AC |
| PDFPobierz kartę katalogową | ||
HSP1P 16 AC250 4P W-SCT HSP1P 16 AC415 4P W-SCT HSP1P 16 AC500 4P W-SCT HSP1P 16 AC690 4P W-SCT | 4P (3P + PE) | 🔵 200~250V AC 🔴 380~415V AC ◯ 480~500V AC ◯ 600~690V AC |
| PDFPobierz kartę katalogową | ||
HSP1P 16 AC250 5P W-SCT HSP1P 16 AC415 5P W-SCT HSP1P 16 AC500 5P W-SCT HSP1P 16 AC690 5P W-SCT | 5P (3P + N + PE) | 🔵 200~250V AC 🔴 380~415V AC ◯ 480~500V AC ◯ 600~690V AC |
| PDFPobierz kartę katalogową | ||
Temperatura otoczenia: -45°C do +65°C | Stopień ochrony: IP66 | Wejście kablowe: dławnica M25 + zaślepka M25 Wbudowany wyłącznik: załączanie / wyłączanie przez obrót wtyczki w gnieździe |
||
CHECK PRICES / BECOME A DISTRIBUTOR

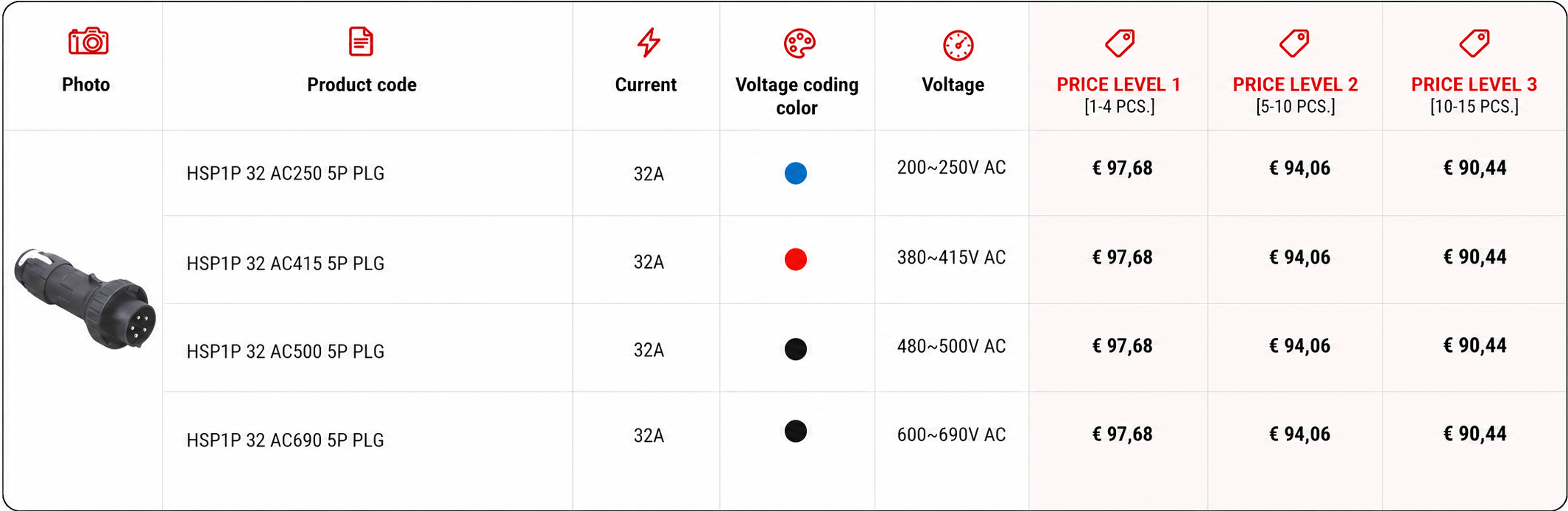

Price list for Ex sockets and plugs
